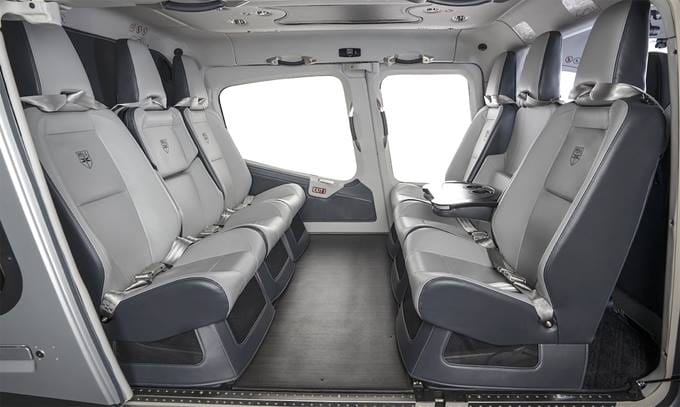

Introducing

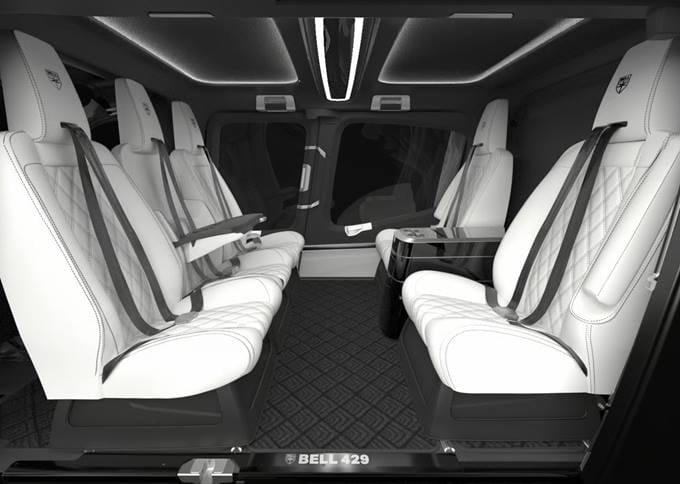

Designer Series

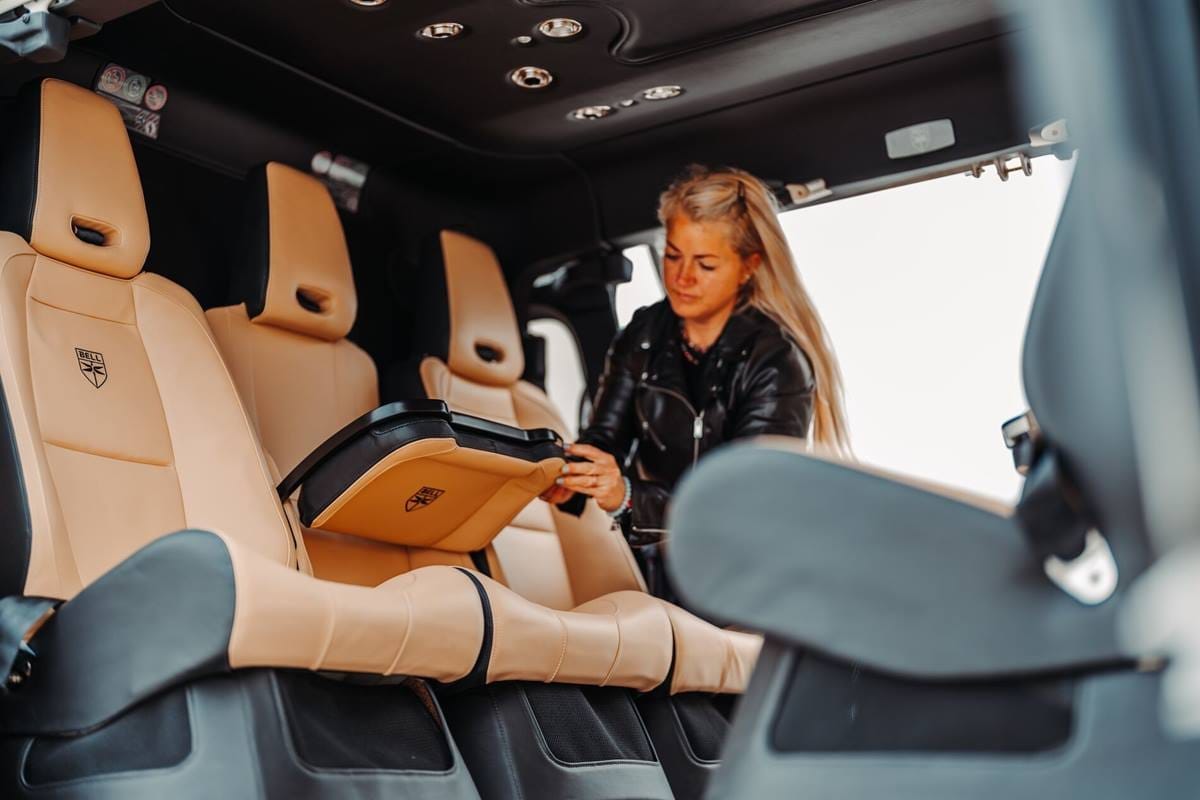

Elevate your cabin experience with superior leathers, enhanced flooring, metal finishes and more with the Bell 429 Designer Series interior. This new interior is offered in five coordinated color schemes and a variety of cabin configurations providing a comfortable and luxurious experience.
Learn more
Fast and comfortable
A smooth, peaceful ride perfect for work or relaxation. A large cabin you can customize to your style. An optional retractable landing gear for convenient taxiing. The Bell 429 is designed around your comfort.
CLICK AND DRAG AIRCRAFT
Hover Performance
At 7,000 lb, ISA Day
14,130
In Ground Effect11,290
Out of Ground Effect

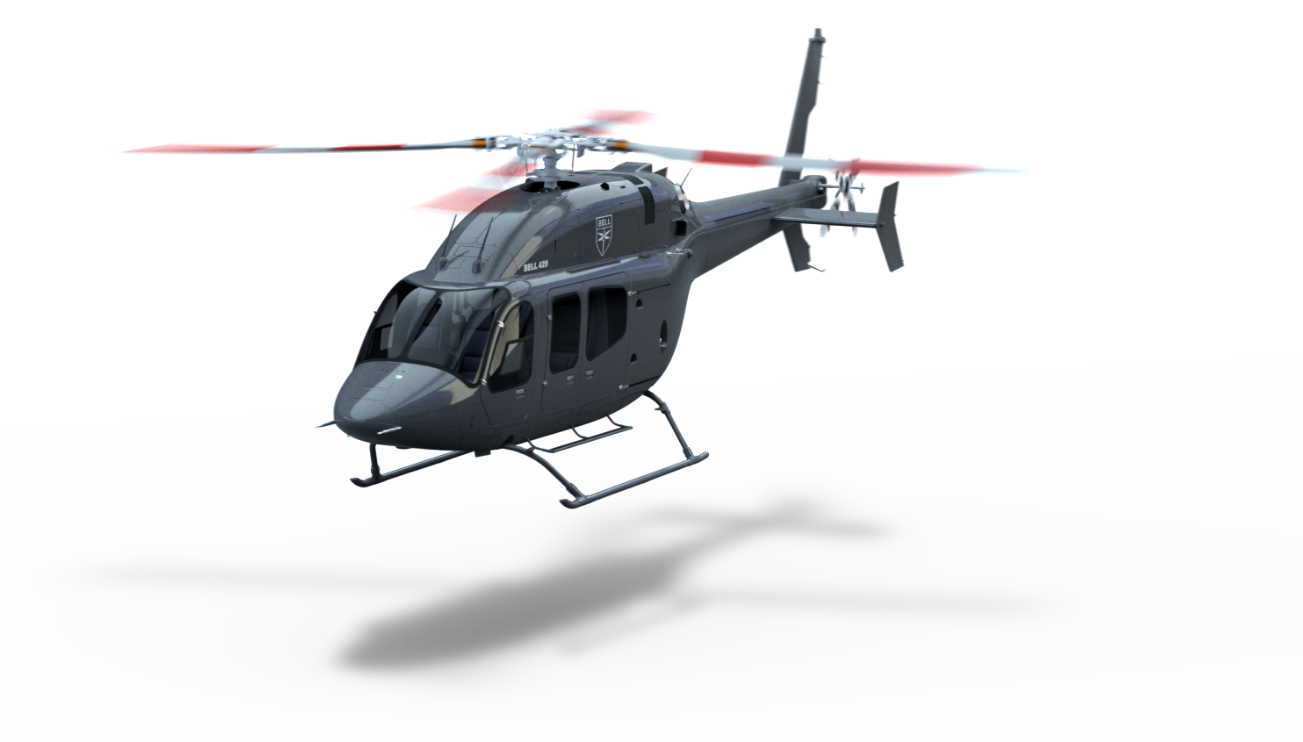

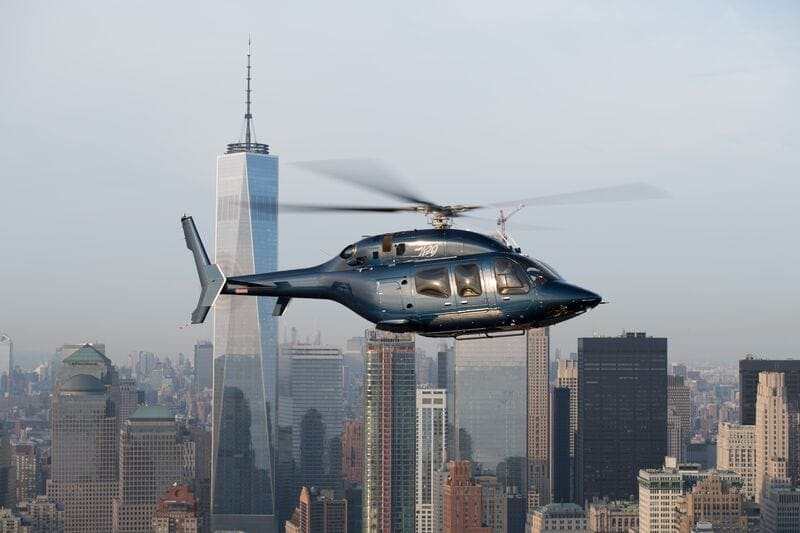

Bell 429
Enjoy accessibility to challenging locations with the Bell 429.
1+7
Capacity
155
Speed
411
Range
Bell 429 M
From desert heat to marine environments, the Bell 429M excels in the most austere conditions. This aircraft is an advanced multi-mission helicopter that comes equipped with the latest weapons and mission management systems. This aircraft can be customized to fulfill your mission needs.
1+7
Capacity
155
Speed
411
Range
Bell 429 WLG
Have a smooth travel experience and let the Bell 429WLG wheels take you right to your destination.
1+7
Capacity
155
Speed
421
Range
Bell 429
Enjoy accessibility to challenging locations with the Bell 429.
1+7
Capacity
155
Speed
411
Range
Bell 429 M
From desert heat to marine environments, the Bell 429M excels in the most austere conditions. This aircraft is an advanced multi-mission helicopter that comes equipped with the latest weapons and mission management systems. This aircraft can be customized to fulfill your mission needs.
1+7
Capacity
155
Speed
411
Range
Bell 429 WLG
Have a smooth travel experience and let the Bell 429WLG wheels take you right to your destination.
1+7
Capacity
155
Speed
421
Range
Please rotate your device to landscape
Missions

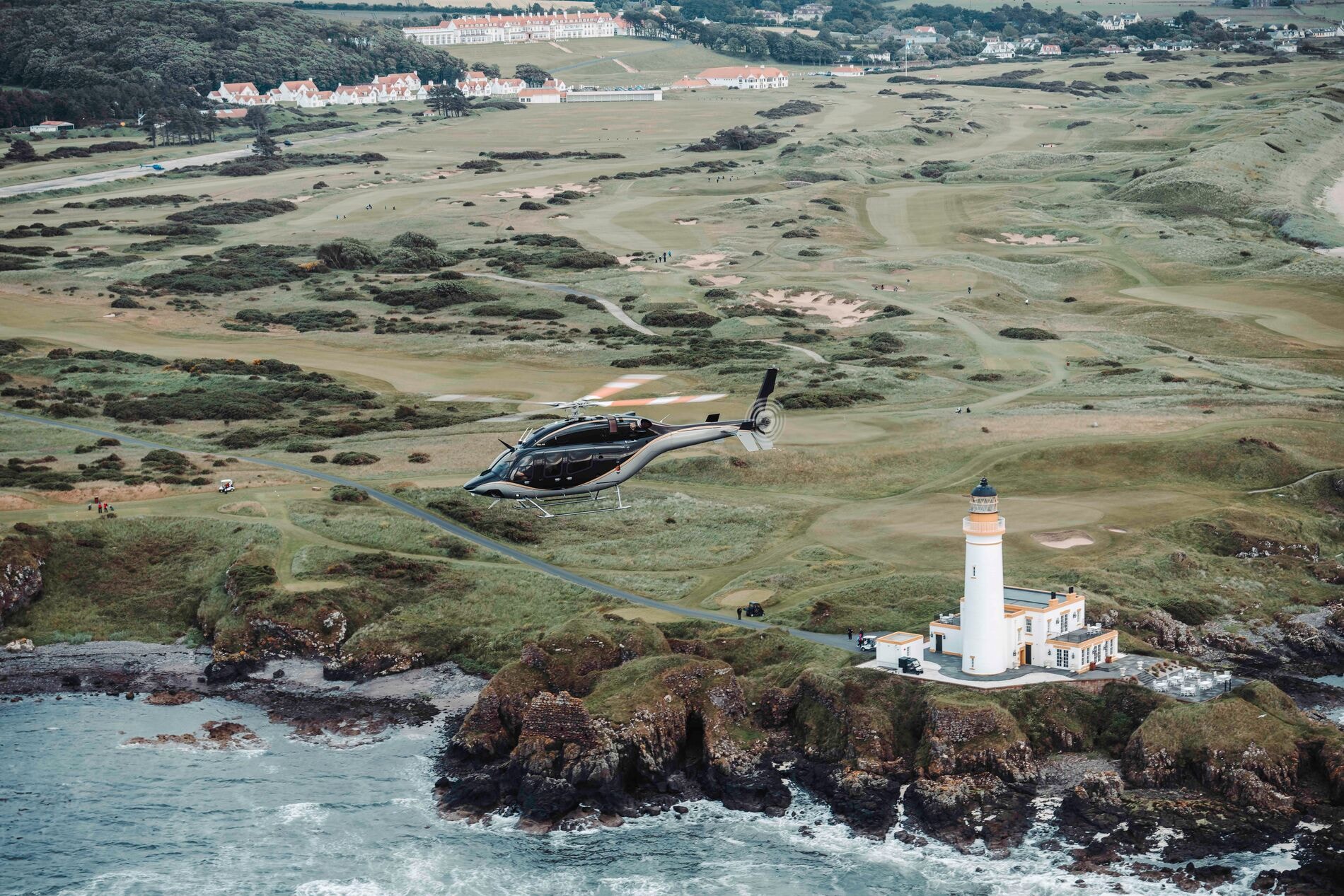

Corporate
Generous Cabin Space
The spacious cabin has seating for six, ample storage and legroom for everyone. And the smooth and quiet ride you need to conduct executive-level business. All to give your in-flight meetings a more refined spin.

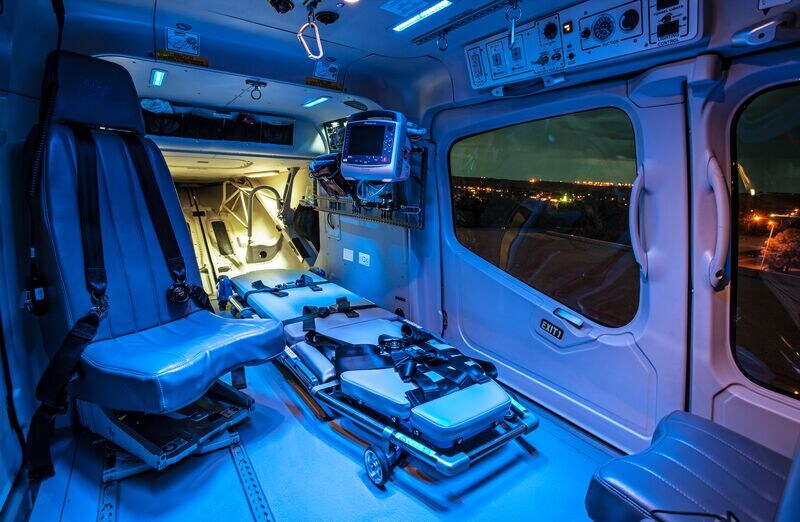

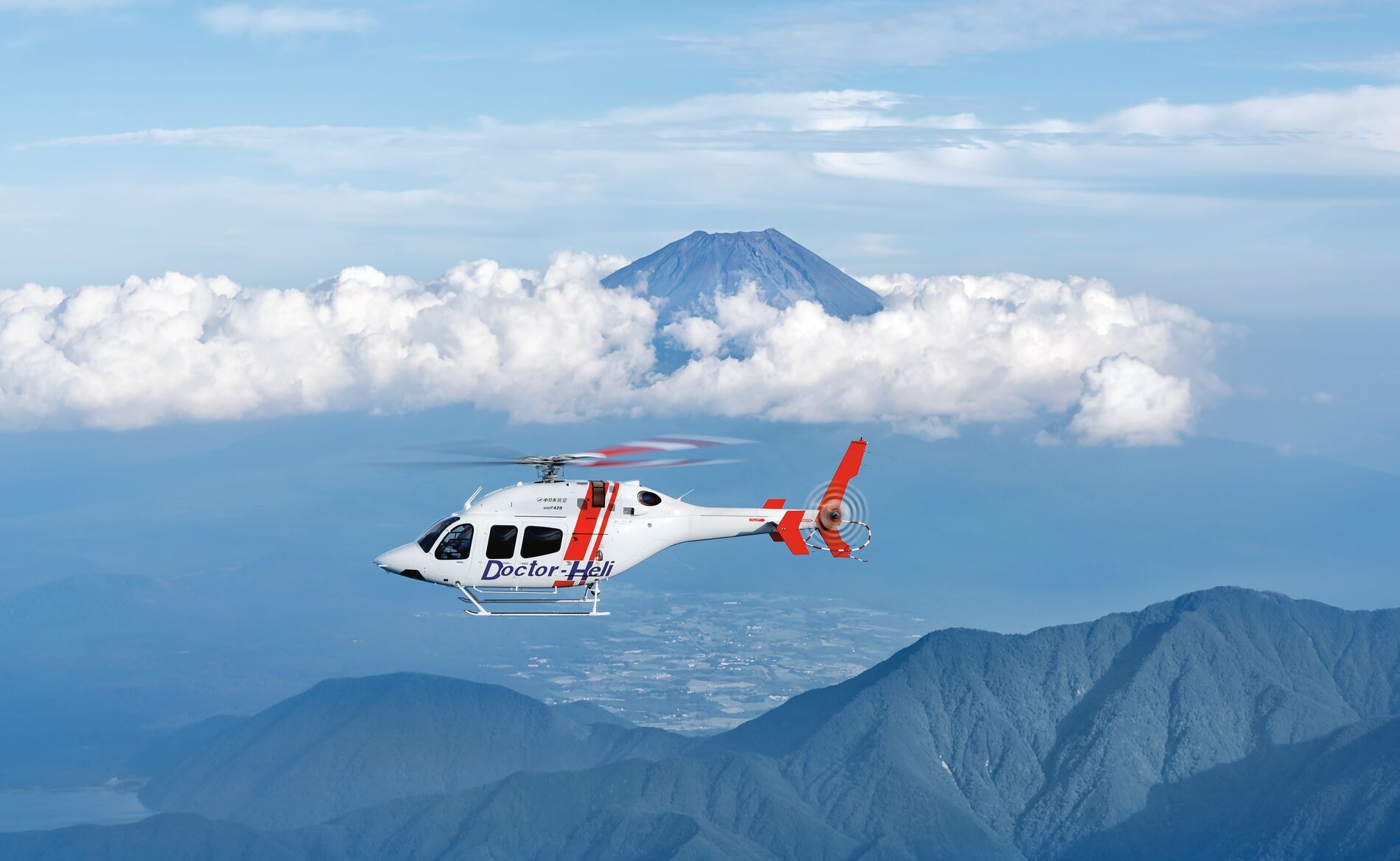

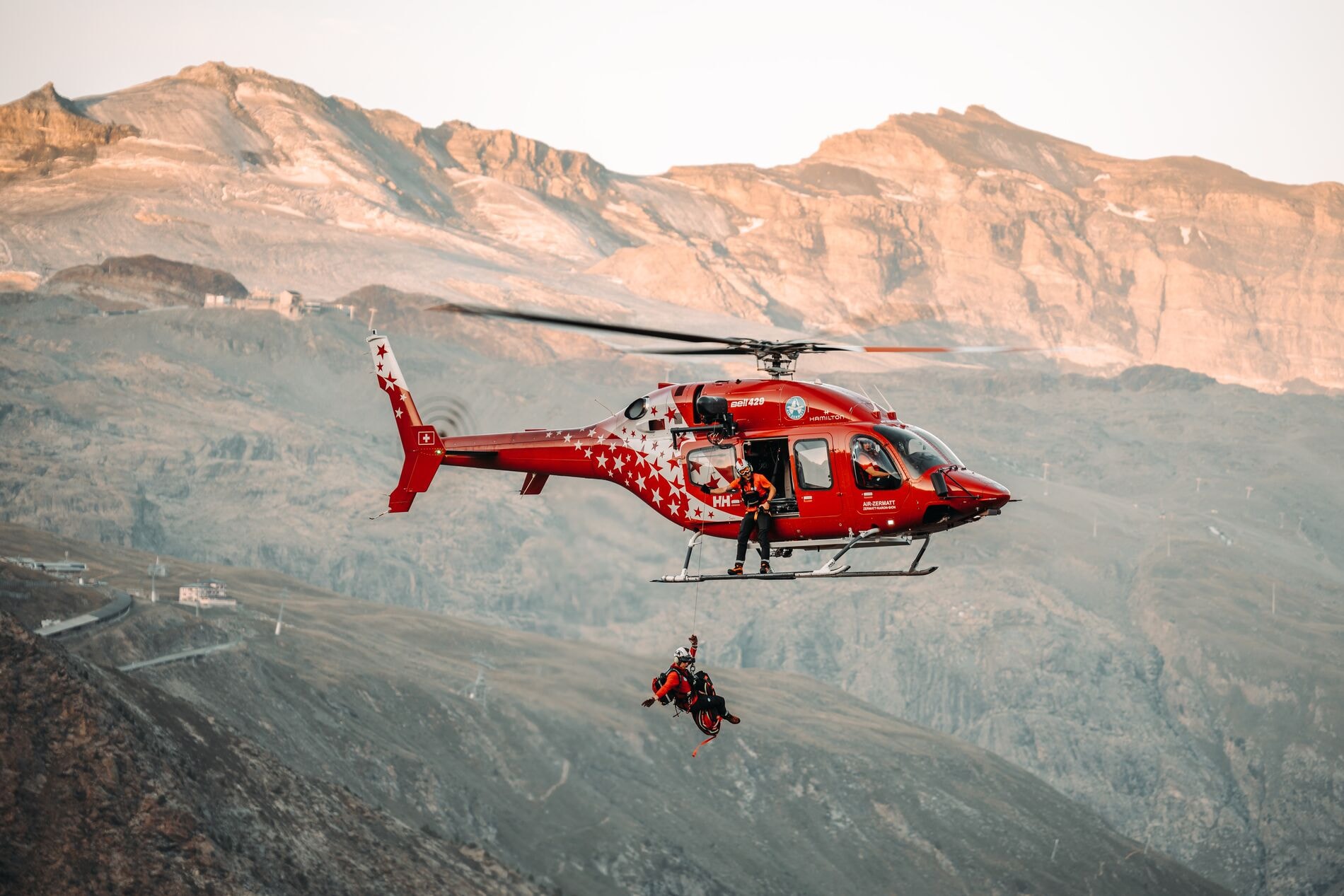

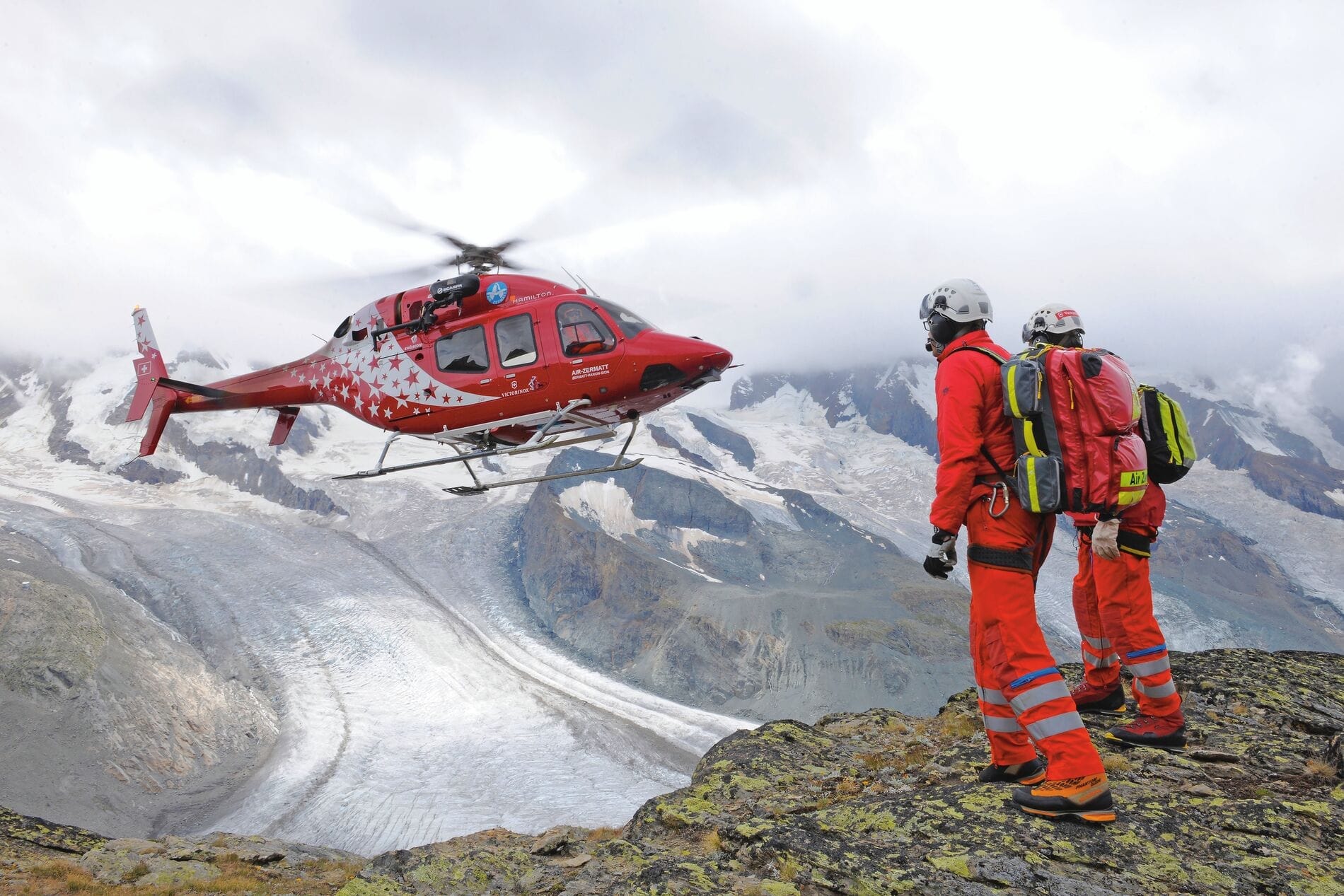

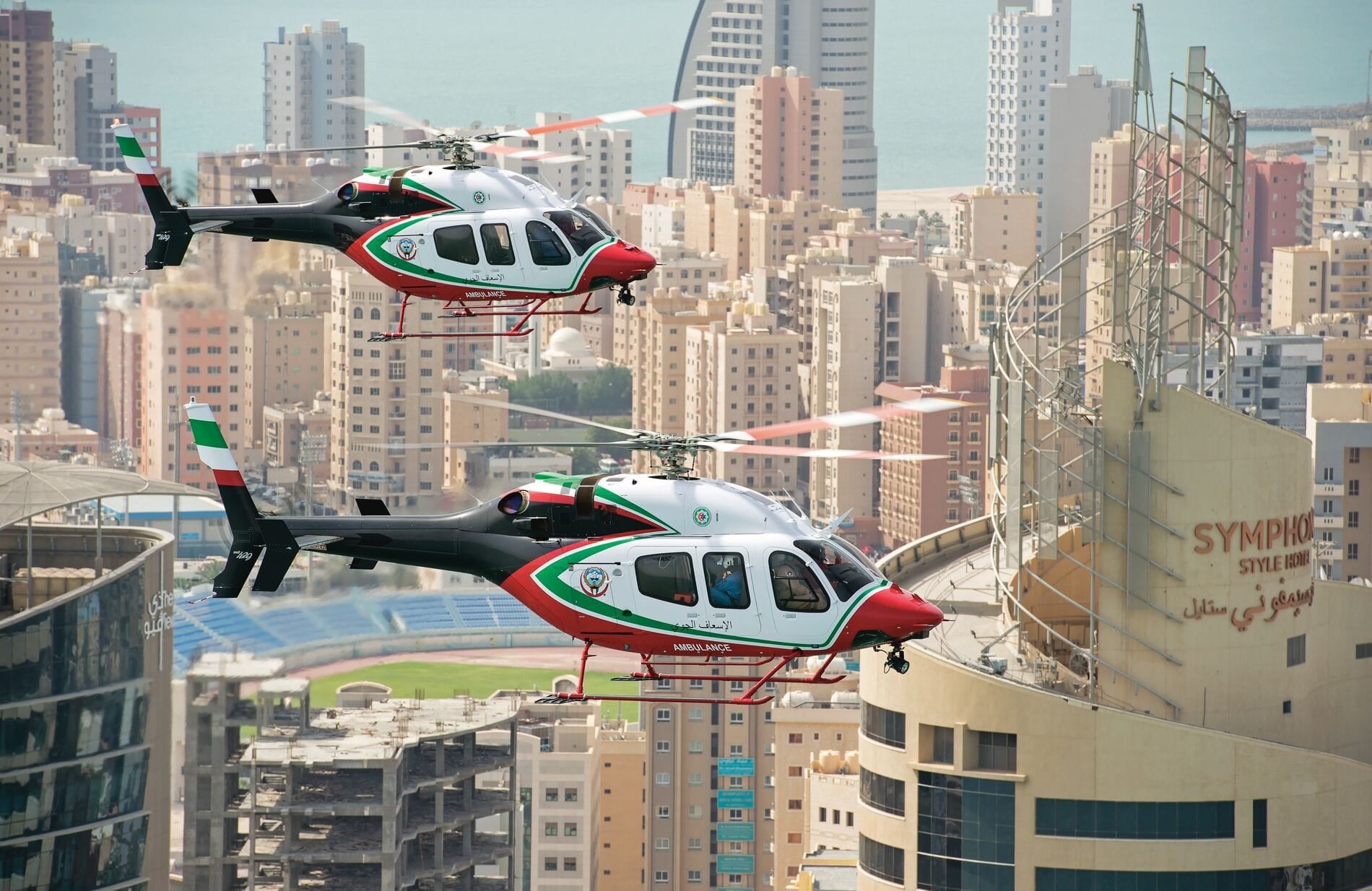

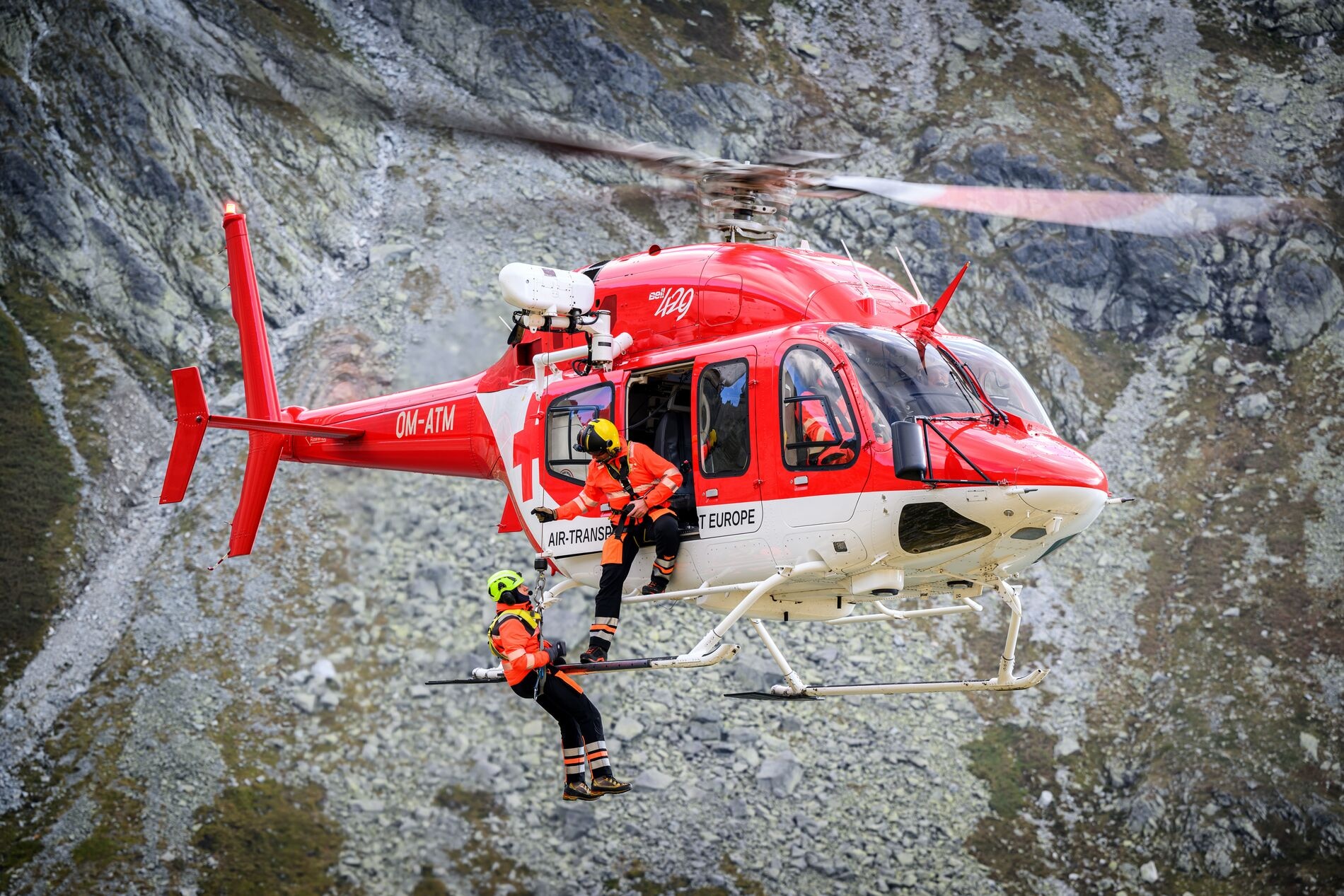

HEMS
When Every Second Counts
Set up your cabin for optimal care. A flat floor provides flexible arrangements. Rear clamshell doors and a litter-height deck make loading easier. All to put your patients at the center of your focus.

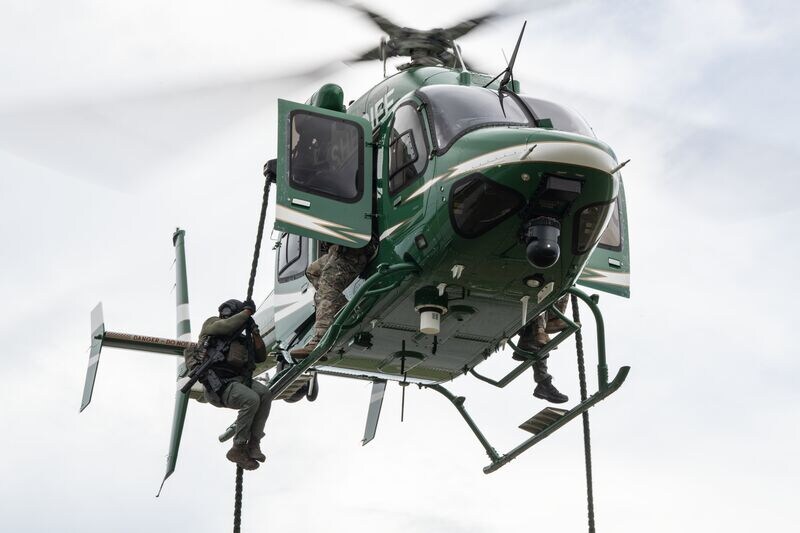

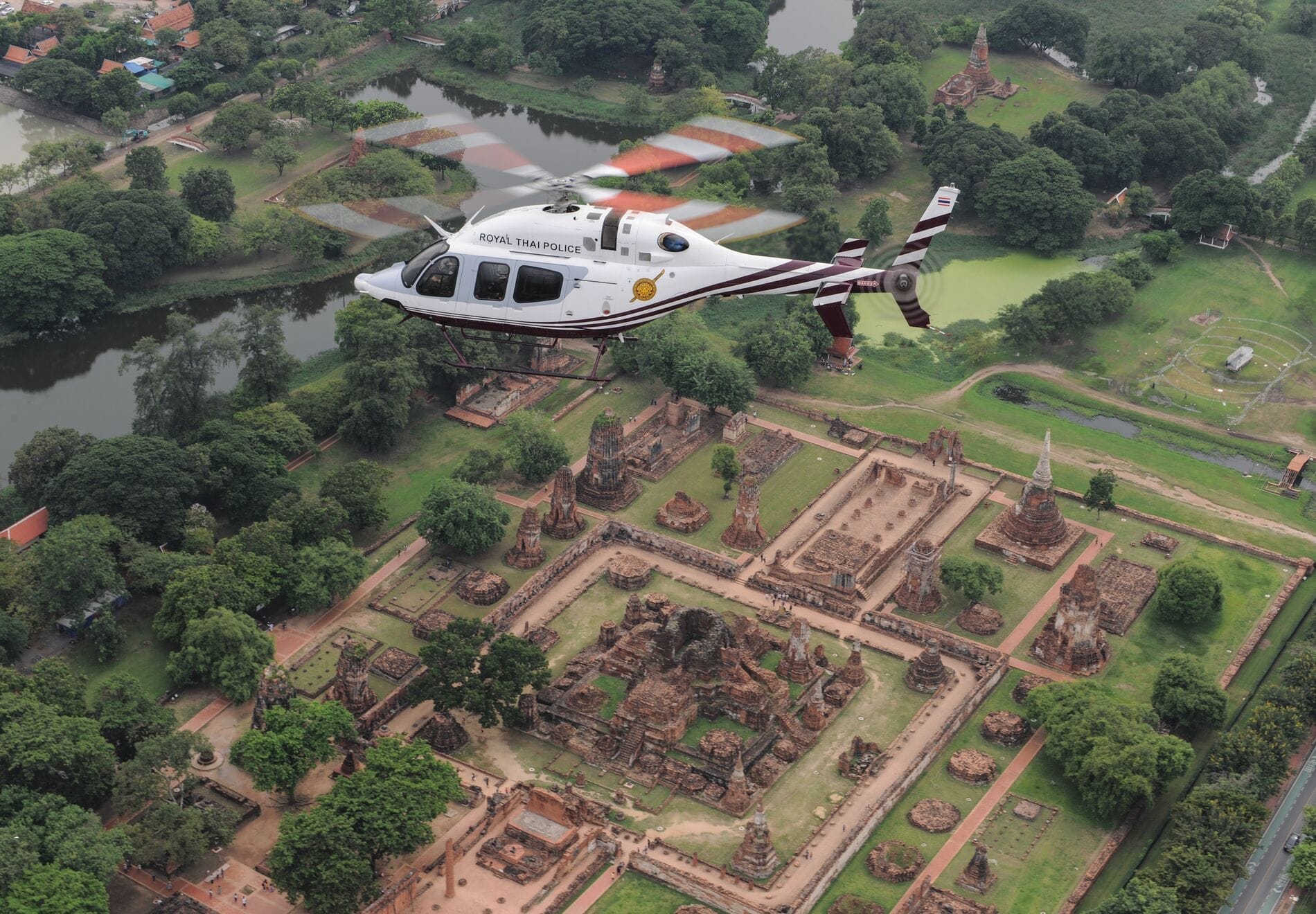

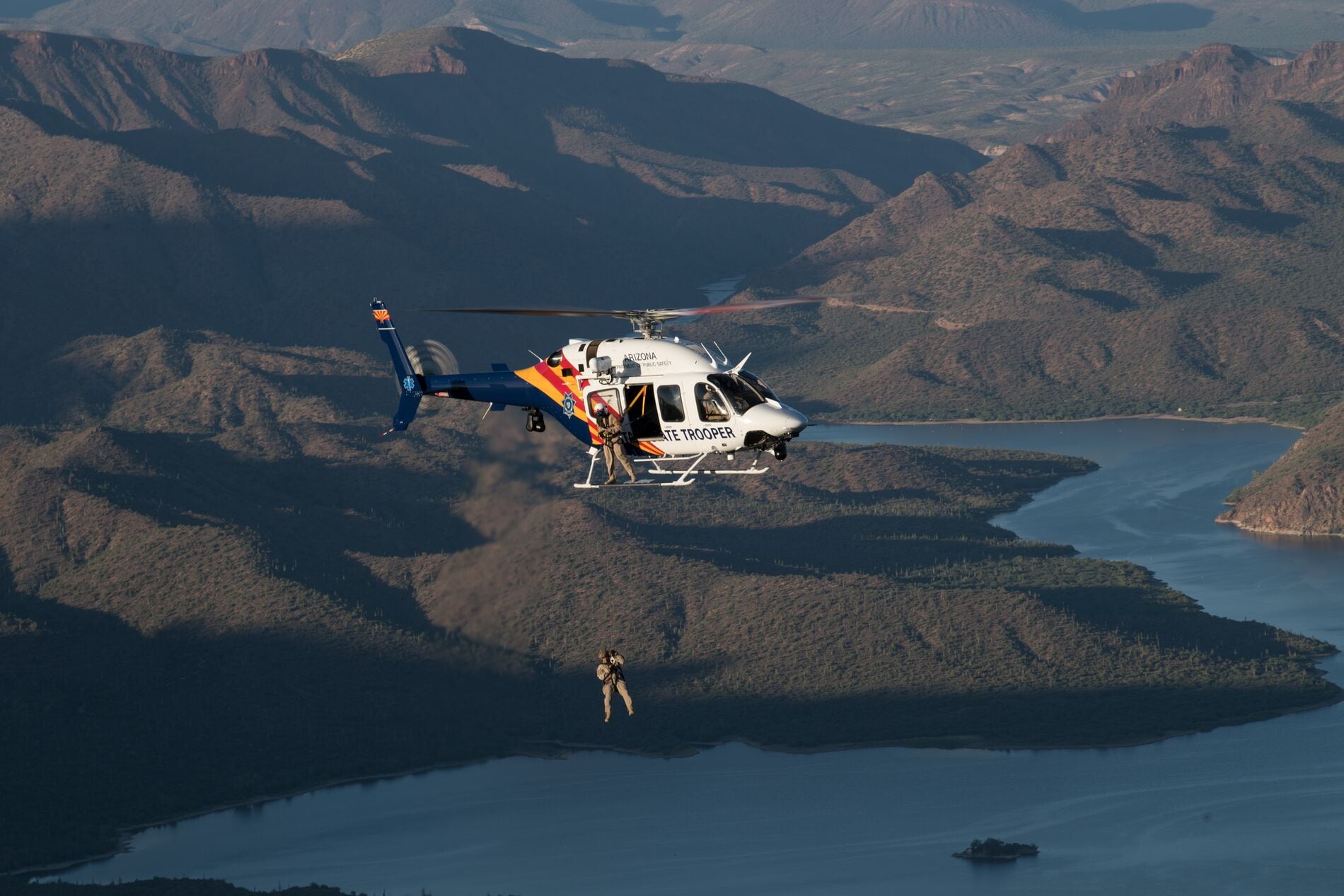

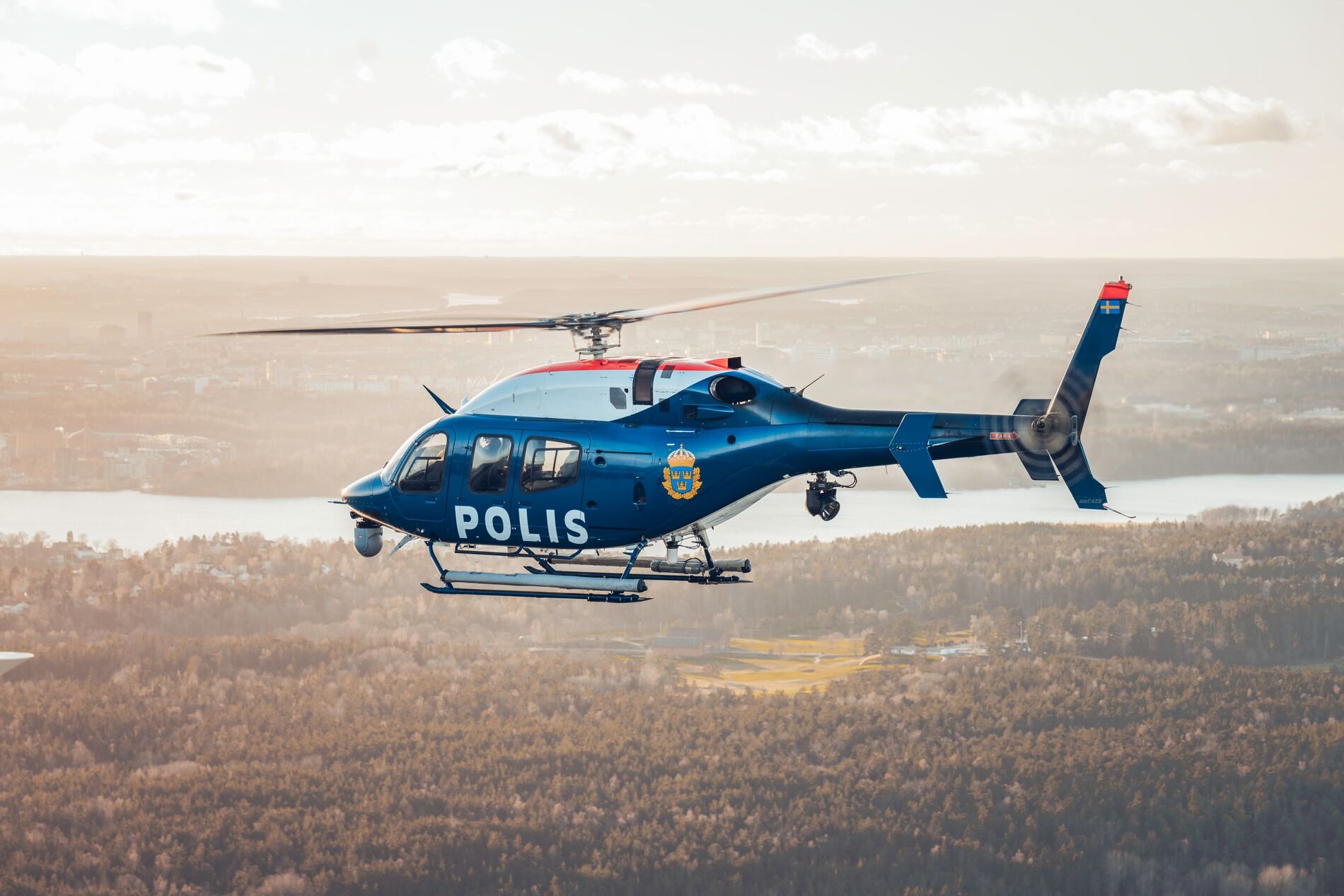

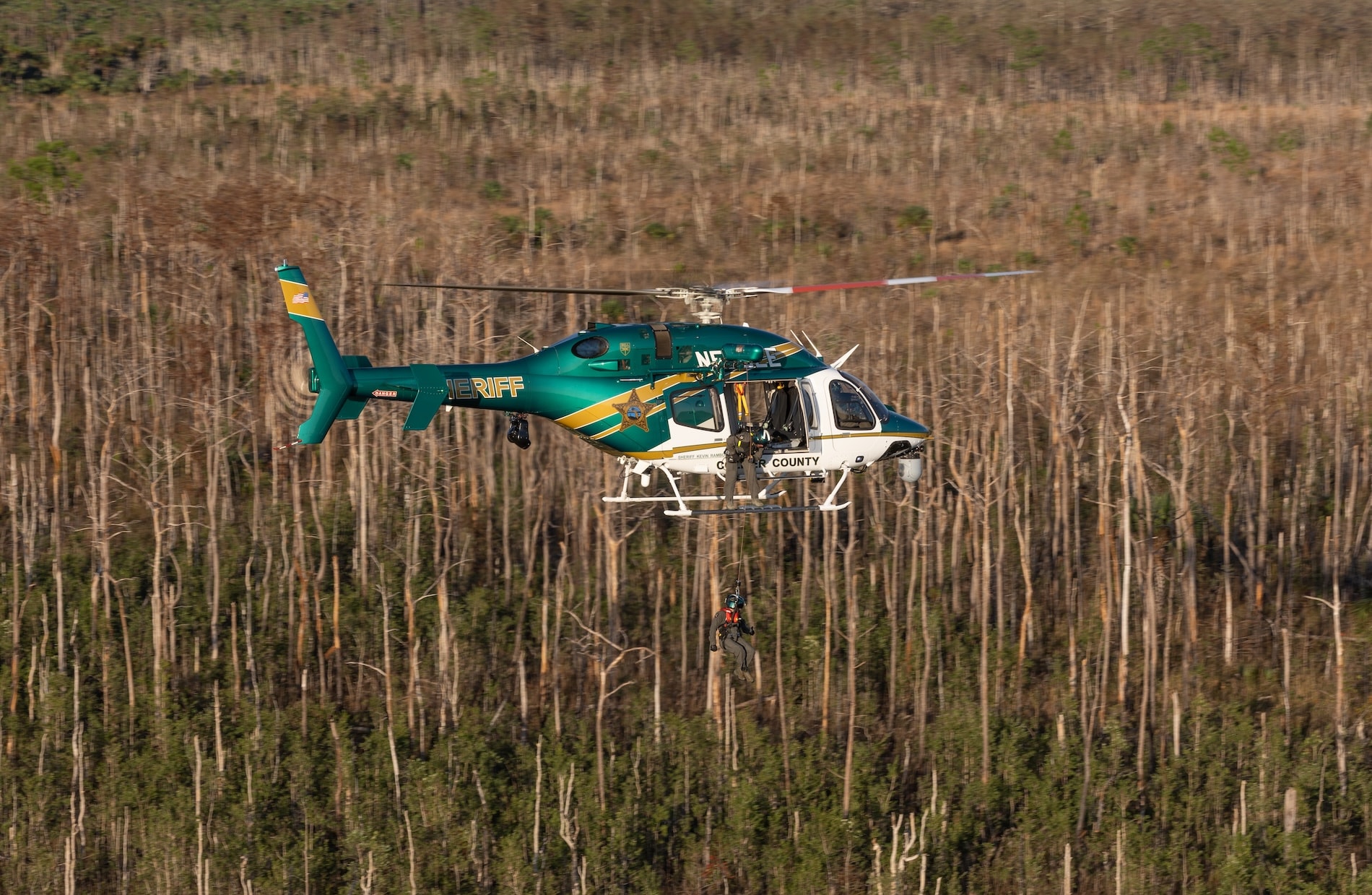

Public Safety
Built for Rapid Response
Arrive on the scene quickly, and be ready for anything. Ample cabin space, large doors and adjustable components accommodate your equipment---and keep your crew comfortable.

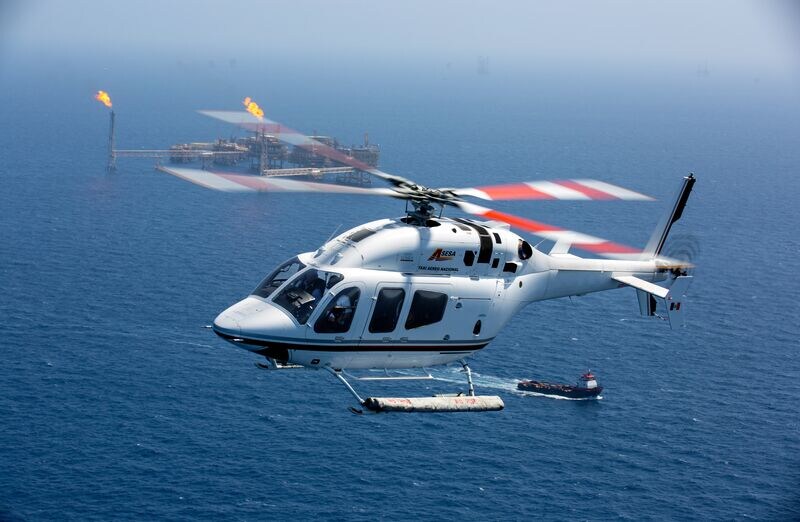

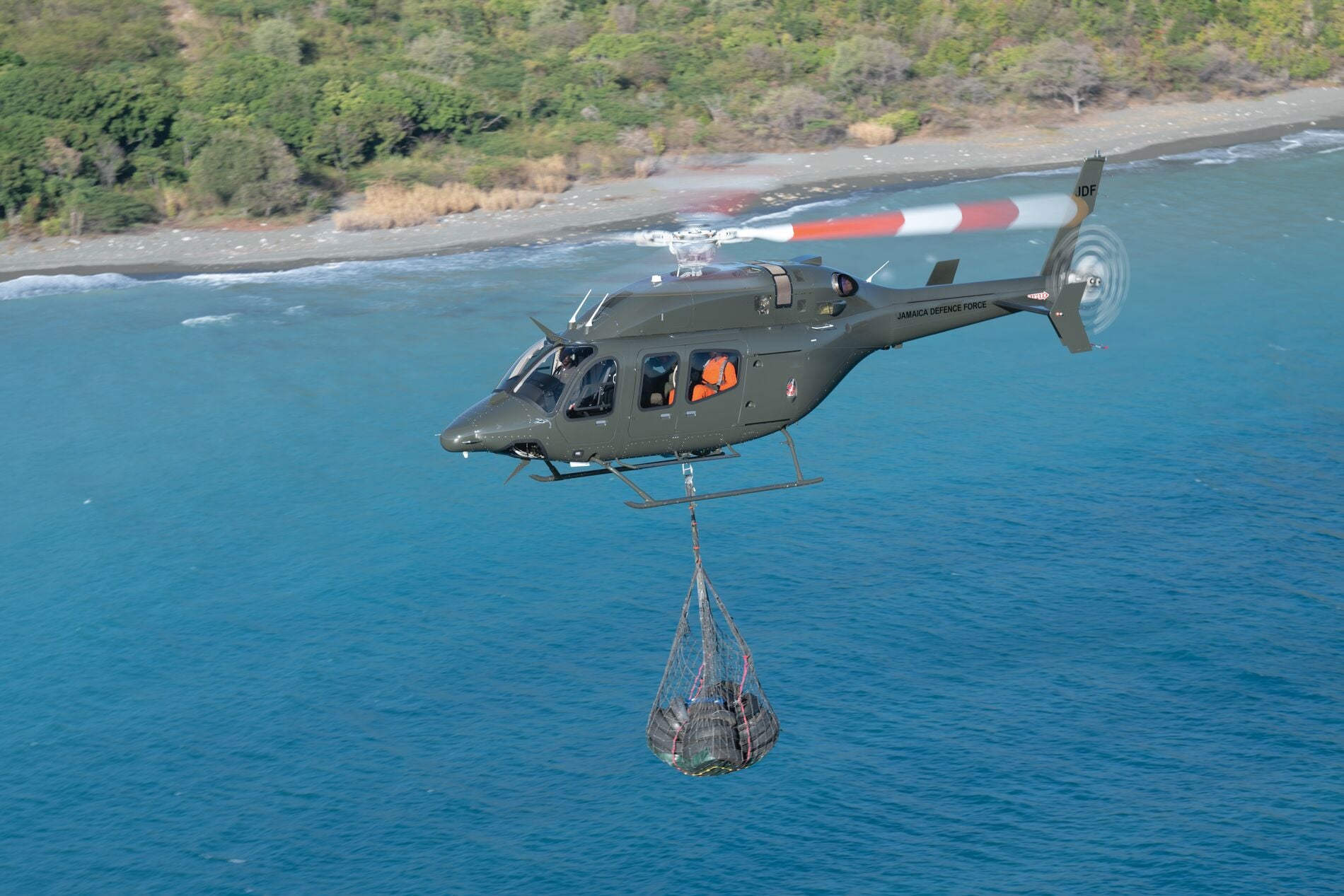

Energy
Reliable & Steady
Stay safe in treacherous environments and protected from salt water wear. Carry out your mission in confidence with a built-in flotation system and a twin-engine platform.
Missions
-
Corporate
Generous Cabin Space
-
HEMS
When Every Second Counts
-
Public Safety
Built for Rapid Response
-
Energy
Reliable & Steady
The spacious cabin has seating for six, ample storage and legroom for everyone. And the smooth and quiet ride you need to conduct executive-level business. All to give your in-flight meetings a more refined spin.
Set up your cabin for optimal care. A flat floor provides flexible arrangements. Rear clamshell doors and a litter-height deck make loading easier. All to put your patients at the center of your focus.
Arrive on the scene quickly, and be ready for anything. Ample cabin space, large doors and adjustable components accommodate your equipment---and keep your crew comfortable.
Stay safe in treacherous environments and protected from salt water wear. Carry out your mission in confidence with a built-in flotation system and a twin-engine platform.
Features

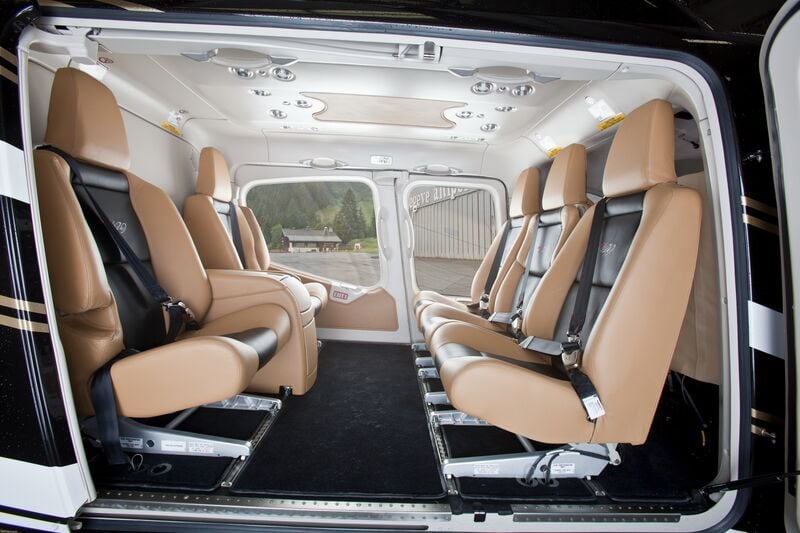

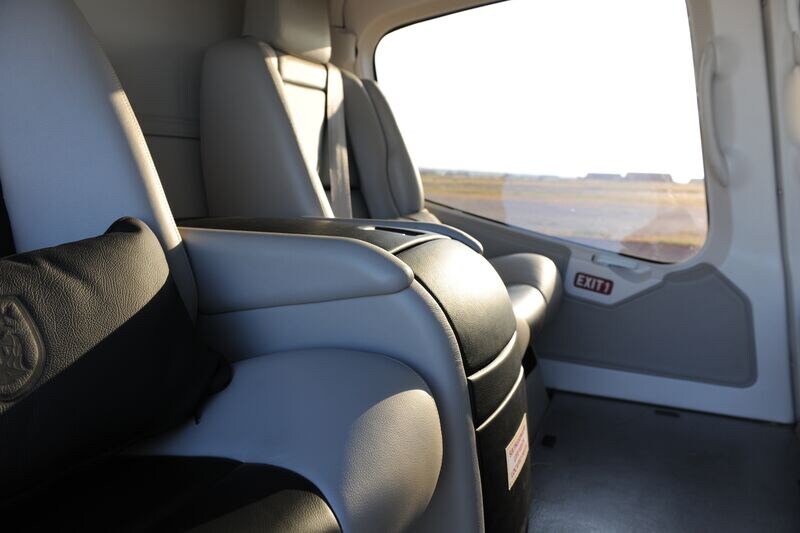

Suite-Sized Cabin
A large, customizable cabin with club seating for up to six. Interior styles to suit your particular taste. And the widest cabin door in its class means no one has to squeeze.
Intuitive Displays
See critical flight information at every turn. The BasixPro software makes calculations for you, and smart displays show you everything you need to know, immediately.
Precise Visual Tools
Stick every landing with satellite-based guidance systems giving you a precise look at your path. Now your aircraft can help you land in the trickiest situations, whether it's a 9-degree approach or a low, 250-feet ceiling.
High Performance Engines

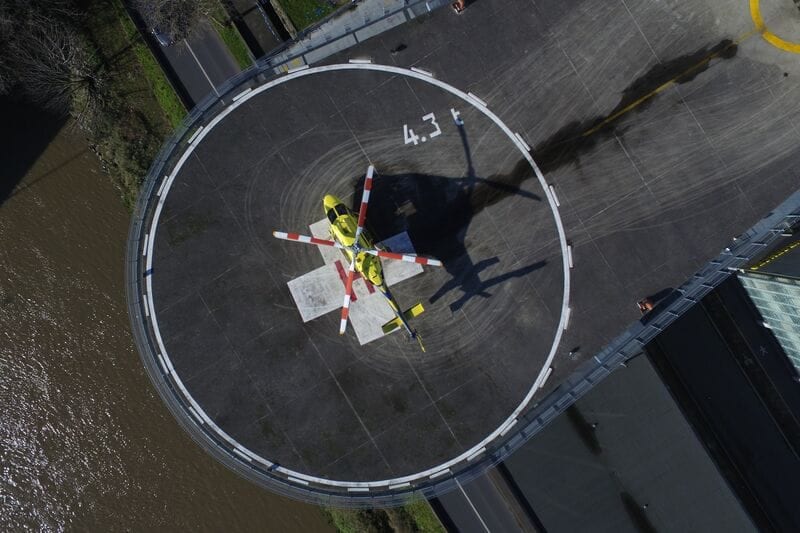

With its incredible horsepower, success is within your reach. Take flight from ground-level or elevated helipads, and power through hot and high conditions with poise.
Wheeled Landing Gear
Short on landing space? Optional retractable wheeled landing gear lets you taxi comfortably and quickly to your desired destination, whether it is the corner of a helipad or yacht. And in flight, less drag gives you more speed with less effort.
Clamshell Doors
Wide aft doors that allow for easy cargo or passenger loading. Fit litters or unwieldy cargo through these doors easily and efficiently, because every moment in an emergency situation counts.
Performance
* Note: Standard MGW, ISA, Standard fuel – no reserve, at 4,000 ft
Capacities
* Requires optional internal increased gross weight (IGW) kit, certified by transport Canada.
** Total contiguous volume, including baggage compartment. Does not include copilot volume of 28 ft³/0.8 m³
** Total contiguous volume, including baggage compartment. Does not include copilot volume of 28 ft³/0.8 m³
Avionics
The Bell 429 highlights the Bell BasiX-Pro™ Integrated avionics system (2nd Gen)
The Bell BasiX-Pro™ Avionics System has been specifically designed to meet the requirements of twin engine helicopters and is optimized for IFR, Category A, and EU-OPS compliant operations. The system is highly flexible and configurable to meet various operating and customization needs. The system takes advantage of the latest in display, computer processing, and digital data bus technology to provide a high degree of redundancy, reliability, and flexibility.
The Bell 429 fully integrated cockpit features:
The BasiX-Pro™ 2nd generation system incorporates Multi-Function “smart” displays units from Astronautics Corporation of America (ACA). As an additional safety feature, the 2nd generation design also includes 1-button instant couple features that quickly restore coupled flight in the event of pending disorientation:
The Bell BasiX-Pro™ Avionics System has been specifically designed to meet the requirements of twin engine helicopters and is optimized for IFR, Category A, and EU-OPS compliant operations. The system is highly flexible and configurable to meet various operating and customization needs. The system takes advantage of the latest in display, computer processing, and digital data bus technology to provide a high degree of redundancy, reliability, and flexibility.
The Bell 429 fully integrated cockpit features:
- Single pilot IFR Capability (Dual-pilot option)
- Automatic Flight Control System (AFCS) featuring redundant digital flight control computers (FCCS) and providing 3-axis or 4-axis capability
- All Engine Indication and Crew Alerting System (EICAS)
- Other aircraft systems interfaces, warnings, cautions, aural alerts, and automated performance features are provided through the remotely located Aircraft Data Interface Unit (ADIU)
- Power and performance situational awareness enhanced through Bell patented power situation indicator (PSI) gauge
- Communication, navigation and surveillance system using Garmin GTN-750/650 NAV/COM/WAAS GPS system
The BasiX-Pro™ 2nd generation system incorporates Multi-Function “smart” displays units from Astronautics Corporation of America (ACA). As an additional safety feature, the 2nd generation design also includes 1-button instant couple features that quickly restore coupled flight in the event of pending disorientation:
- Pressing the collective-mounted GA (go around) will re-engage force trim and attitude hold if necessary and will set the aircraft to climb in a level roll attitude
- Pressing the CHFD “CPL” button when uncoupled will re-engage force trim and attitude hold if necessary and will stabilize flight by coupling the flight director to hold current heading, vertical speed, and if 4-axis, airspeed as well. From there, the pilot can adjust references and change modes as required.
Powerplant
Increased Gross Weight (IGW)
Transport Canada approved operation of the Bell 429 at an internal gross weight of 7,500 lb (3,402 kg) in December 2011, increasing the platform's gross weight and enabling customers to operate with greater payloads. To date, the Bell 429 increased gross weight (IGW) has been approved by more than 25 countries, including Canada, China, Brazil and Australia with pending validation in additional nations.
Operation at an internal gross weight of 7,500 lb (3,402 kg) requires installation of the following equipment:
Operation at an internal gross weight of 7,500 lb (3,402 kg) requires installation of the following equipment:
- Flashing Forward Light
- Radar Altimeter
- Helicopter Terrain Avoidance and Warning System (HTAWS)
- Cockpit Voice Recorder/Flight Data Recorder
Performance
* Note: Standard MGW, ISA, Standard fuel – no reserve, at 4,000 ft
Capacities
* Requires optional internal increased gross weight (IGW) kit, certified by transport Canada.
** Total contiguous volume, including baggage compartment. Does not include copilot volume of 28 ft³/0.8 m³
** Total contiguous volume, including baggage compartment. Does not include copilot volume of 28 ft³/0.8 m³
Avionics
The Bell 429 highlights the Bell BasiX-Pro™ Integrated avionics system (2nd Gen)
The Bell BasiX-Pro™ Avionics System has been specifically designed to meet the requirements of twin engine helicopters and is optimized for IFR, Category A, and EU-OPS compliant operations. The system is highly flexible and configurable to meet various operating and customization needs. The system takes advantage of the latest in display, computer processing, and digital data bus technology to provide a high degree of redundancy, reliability, and flexibility.
The Bell 429 fully integrated cockpit features:
The BasiX-Pro™ 2nd generation system incorporates Multi-Function “smart” displays units from Astronautics Corporation of America (ACA). As an additional safety feature, the 2nd generation design also includes 1-button instant couple features that quickly restore coupled flight in the event of pending disorientation:
The Bell BasiX-Pro™ Avionics System has been specifically designed to meet the requirements of twin engine helicopters and is optimized for IFR, Category A, and EU-OPS compliant operations. The system is highly flexible and configurable to meet various operating and customization needs. The system takes advantage of the latest in display, computer processing, and digital data bus technology to provide a high degree of redundancy, reliability, and flexibility.
The Bell 429 fully integrated cockpit features:
- Single pilot IFR Capability (Dual-pilot option)
- Automatic Flight Control System (AFCS) featuring redundant digital flight control computers (FCCS) and providing 3-axis or 4-axis capability
- All Engine Indication and Crew Alerting System (EICAS)
- Other aircraft systems interfaces, warnings, cautions, aural alerts, and automated performance features are provided through the remotely located Aircraft Data Interface Unit (ADIU)
- Power and performance situational awareness enhanced through Bell patented power situation indicator (PSI) gauge
- Communication, navigation and surveillance system using Garmin GTN-750/650 NAV/COM/WAAS GPS system
The BasiX-Pro™ 2nd generation system incorporates Multi-Function “smart” displays units from Astronautics Corporation of America (ACA). As an additional safety feature, the 2nd generation design also includes 1-button instant couple features that quickly restore coupled flight in the event of pending disorientation:
- Pressing the collective-mounted GA (go around) will re-engage force trim and attitude hold if necessary and will set the aircraft to climb in a level roll attitude
- Pressing the CHFD “CPL” button when uncoupled will re-engage force trim and attitude hold if necessary and will stabilize flight by coupling the flight director to hold current heading, vertical speed, and if 4-axis, airspeed as well. From there, the pilot can adjust references and change modes as required.
Powerplant
Increased Gross Weight (IGW)
Transport Canada approved operation of the Bell 429 at an internal gross weight of 7,500 lb (3,402 kg) in December 2011, increasing the platform's gross weight and enabling customers to operate with greater payloads. To date, the Bell 429 increased gross weight (IGW) has been approved by more than 25 countries, including Canada, China, Brazil and Australia with pending validation in additional nations.
Operation at an internal gross weight of 7,500 lb (3,402 kg) requires installation of the following equipment:
Operation at an internal gross weight of 7,500 lb (3,402 kg) requires installation of the following equipment:
- Flashing Forward Light
- Radar Altimeter
- Helicopter Terrain Avoidance and Warning System (HTAWS)
- Cockpit Voice Recorder/Flight Data Recorder
Performance
Capacities
*MGW, Sea Level, ISA, no reserve
Avionics
Garmin GTN-650/750
The Garmin GTN-750/650 system provides intuitive touchscreen controls, and the large, six-inch GTN-750 display provides unprecedented access to Navigation/Communication/GPS-WAAS functions, including:
- Graphical flight planning capability with touchscreen waypoint entry or sequence modification;
- High-resolution terrain mapping, including optional Internal TAWS-B terrain alerting;
- Garmin GTX-33H ES transponder with extended squitter provides ADS-B out traffic display capability;
- Two VHF communication transceivers with 10 watt standard or 16 watt optional transmitting power, and 8.33 or 25 KHz channel spacing;
- Geo-referenced charting;
- GPS TSO’d to C146C, authorized to C146, authorized for Class 1, 2 and 3 Localizer Precision with Vertical Guidance (LPV) approaches;
- Multiple weather options where the supporting weather reporting/advisory infrastructure is available.
Weights
Upgrades
